Sebazáchranné prístroje
| Rated duration in accordance with EN 13794:2002 and AS/NZS 1716:2012 at lung ventilation, not less: | |
| 10 l/min | 90 min |
| 35 l/min | 30 min |
| Breathing resistance (at inhalation or exhalation) during operation, max | 1,0 kPa |
| The temperature of the inhaled gas, °C, not more | 50 °С |
| The volume of oxygen in the inhaled gas during the rated duration, not less | 21% |
| The maximum volume fraction of carbon dioxide in the inhaled gas, not more | 3% |
| The average volume fraction of carbon dioxide in the inhaled gas during the rated duration, not more | 1,5% |
| The volume of the breathing bag, not less | 6 L |
| Overall dimensions (without waist and shoulder straps or bag), standard configuration: | |
| width | 215 mm |
| height | 191 mm |
| depth | 106 mm |
| Weight of SCSR in the configuration without belt loops | 2,4±0,05 kg |
| Operating temperature | from -5 to +60 °С |
| Relative humidity (at +35 °C) during operation and storage | up to 100% |
| Shelf life, years | 10 |
| Rated duration in accordance with EN 13794:2002 and AS/NZS 1716:2012 at lung ventilation, not less: | |
| 10 l/min | 180 min |
| 35 l/min | 60 min |
| Breathing resistance (at inhalation or exhalation) during operation, max | 0,75 kPa |
| The temperature of the inhaled gas, °C, not more | 50 °С |
| The volume of oxygen in the inhaled gas during the rated duration, not less | 21% |
| The maximum volume fraction of carbon dioxide in the inhaled gas, not more | 3% |
| The average volume fraction of carbon dioxide in the inhaled gas during the rated duration, not more | 1,5% |
| The volume of the breathing bag, not less | 6 L |
| Overall dimensions (without waist and shoulder straps or bag), standard configuration: | |
| width | 215 mm |
| height | 227 mm |
| depth | 106 mm |
| Weight of SCSR in the configuration without belt loops | 2,9-0,1 kg |
| Operating temperature | from -5 to +60 °С |
| Relative humidity (at +35 °C) during operation and storage | up to 100% |
| Shelf life, years | 10 |

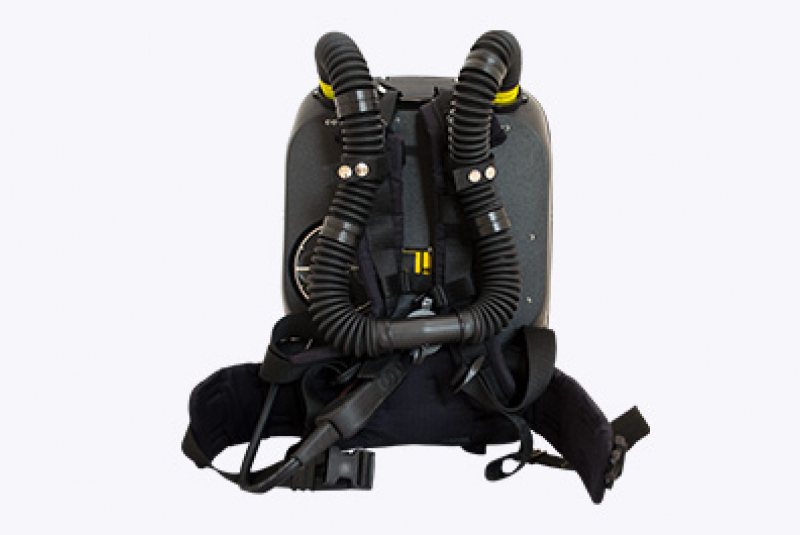

| Nominal rated duration for medium-to-heavy work, hours | 4 |
| Weight of the apparatus(full oxygen cylinder), excluding mask, ice and cooler cover, max, kg | 11,8 |
| Weight of the apparatus(full oxygen cylinder), excluding mask, but with ice and cooler cover, max, kg | 12,6 |
| Weight of full-face mask, max, kg | 0,7 |
| Weight of soda lime CO2 absorber, min, kg | 2,3 |
| Oxygen reserve, l | 400 |
| Pressure in a cylinder, MPa | 20 |
| Operating pressure of the alarm signal, MPa | 5,5 |
| Continuous oxygen supply, l/min | 1,4 ±0,1 |
| Emergency oxygen supply, l/min | 80 |
| Pressure of lung demand valve, Pa | 350 |
| Overflow valve activation pressure, Pa | 150..400 |
| Useable capacity of the breathing bag, l | 5 |
| Dimensions, mm | 450 × 375 × 165 ±5 |
| Service life, max, years | 10 |
| Nominal working duration, when performing medium-to-heavy work, at the ambient temperature of (25 ± 1) °C and atmosphere pressure of (100 ± 4) kPa, hours, not less | 4 |
| Oxygen cylinder capacity, dm3 | 2 |
| Pressure in the oxygen cylinder, МPа | 25 |
| Oxygen capacity, dm3, not less | 500 |
| Weight of soda lime CO2 absorber, not less, kg | 2,3 |
| Continuous oxygen supply, dm3/min | 1,8±0,1 |
| The amount of oxygen supplied by the emergency valve (bypass) at a pressure in the cylinder from 25 to 5 MPa, dm3/min, not less | 80 |
| The opening pressure of the lung-governed demand valve during inhalation, Pa | 0 |
| Relief valve opening pressure, Pa, not more | 1000 |
| The useful capacity of the breathing bag, dm3, not less | 9 * |
| Mass of face pieces (full face mask), kg, not more: | 0,75 |
| Exhalation breathing resistance at lung ventilation 30 dm3/min, Pa, not more | 600 |
| Inhalation breathing resistance at lung ventilation 30 dm3/min, Pa, no less | 50 |
| Apparatus weight without oxygen, chemical absorber, cooling elements, kg, not more | 9,8 ** |
| Equipped apparatus weight without cooling elements, kg, no more | 13,5 |
| Equipped apparatus weight with cooling elements, kg, no more | 14,3 |
| Dimensions, mm: | |
| Length | 582±3 |
| Width | 403±3 |
| Height | 200±3 |
| Service life, max, years | 10 |
* Water displacement method
** If supplied with a medium-pressure connection between the apparatuses, the mass increases by 0.15 kg
